Contribute Medium-Large Libraries to DAX Lib

When your library starts to grow you might want to connect with your users with GitHub issues, collaborate with others to develop the library or Add documentation site and host (for example) on GitHub Pages. Medium-Large libraries allow you to have a repo dedicated to your library to do just this. Let see how to set one up.

Create daxlib/lib-quickstart-template Template Template

Create daxlib/lib-quickstart-template Template Template:

Use daxlib/lib-quickstart-template Template

This creates a personal copy of the repository in your GitHub account. This repo will be dedicated to your library, and should be named after your library (i.e Contoso/Contoso.Conversion). If you want to have more than one Medium-Large library, simply create another repo from the template. Follow the naming conventions for the library name.

Just like with Small libraries you will also need a fork of daxlib/daxlib (i.e Contoso/daxlib). This will be used to generate the pull request to daxlib/daxlib.

Add your library

DAX lib expects a manifest.daxlib and lib/functions.tmdl files. A README.md and icon.png can be optionally included. These are included in the src folder.

.
├── .github/
│   └── workflows/
│       └── publish-package.yml   # Workflow to create branch on `contoso/daxlib` with your library version
├── src/
│   ├── lib/
│   │   └── functions.tmdl        # Required - Your DAX UDF functions
│   ├── icon.png                  # Optional - Icon for your library
│   ├── README.md                 # Optional - Docs for your library
│   └── manifest.daxlib           # Required - Declares package properties
└── README.md                     # Optional - Info on your library

You can update the README.md at the root of the library to give user who visit your daxlib/lib-quickstart-template Template fork information about the library, how to contribute or how to sumbit issues

manifest.daxlib

Required: The package properties in JSON format.

{
    "$schema": "https://raw.githubusercontent.com/sql-bi/daxlib/refs/heads/main/schemas/manifest/1.0.0/manifest.1.0.0.schema.json",
    "id": "Contoso.Conversion",
    "version": "0.1.0",
    "authors": "Contoso",
    "description": "My amazing library",
    "tags": "DAX,UDF",
    "releaseNotes": "New functions",   // optional
    "projectUrl": "https://contoso.github.io/contoso.conversion/", // optional Docs site
    "repositoryUrl": "https://github.com/sql-bi/daxlib/tree/main/packages/c/contoso.conversion",
    "icon": "/icon.png",    // optional
    "readme": "/README.md"  // optional
}

Refer to the JSON schema for the complete specification of available properties. You can also refer to the example DaxLib.Sample package.

lib/functions.tmdl

Required: Contains TMDL definition of the functions within your library. TMDL script must not have CreateOrReplace keyword.

/// Convert from Celsius(°C) to Fahrenheit(°F)
/// @param {decimal} temperature - The temperature in Celsius
/// @returns The temperature converted to Fahrenheit
FUNCTION CelsiusToFahrenheit = ( temperature: DOUBLE ) =>
        ( temperature * ( 9 / 5 ) ) + 32

  annotation DAXLIB_PackageId = Contoso.Conversion
  annotation DAXLIB_PackageVersion = 0.1.0
...

Naming Convention

There are some guidelines on DAX UDF naming conventions:

• DAX Lib Naming Conventions
• SQLBI DAX Naming Conventions

Annotations

We are able to replace the annotation values in functions.tmdl with placeholders. These will be overwritten by the version specified in manifest.daxlib when running the publish-package.yml workflow.

annotation DAXLIB_PackageId = __PLACEHOLDER_PACKAGE_ID_
annotation DAXLIB_PackageVersion = __PLACEHOLDER_PACKAGE_VERSION__


Optional: icon for library

The icon file must be in PNG format (.PNG), with a maximum size of 100 KB.

README.md

Optional: Markdown docs file, with general information about the library, usage instructions, examples, and any notes for users

The file must be in Markdown format (.MD), with a maximum size of 100 KB. For security reasons, only a limited set of Markdown features are supported, and external links may be restricted to trusted domains.

Publish Your Library

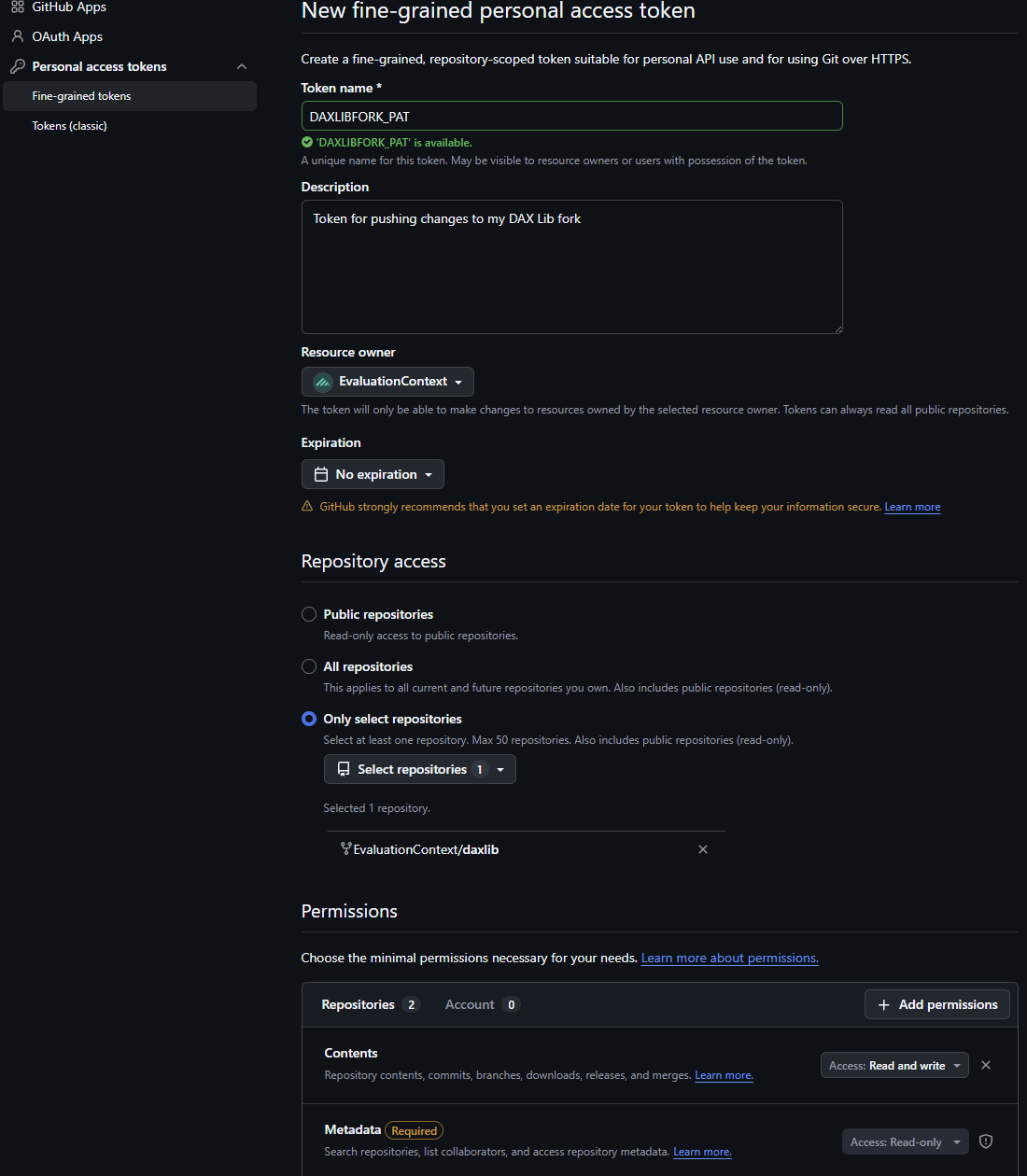

We first need to create a Personal Access Token, granting read/write permissions on contoso/daxlib.

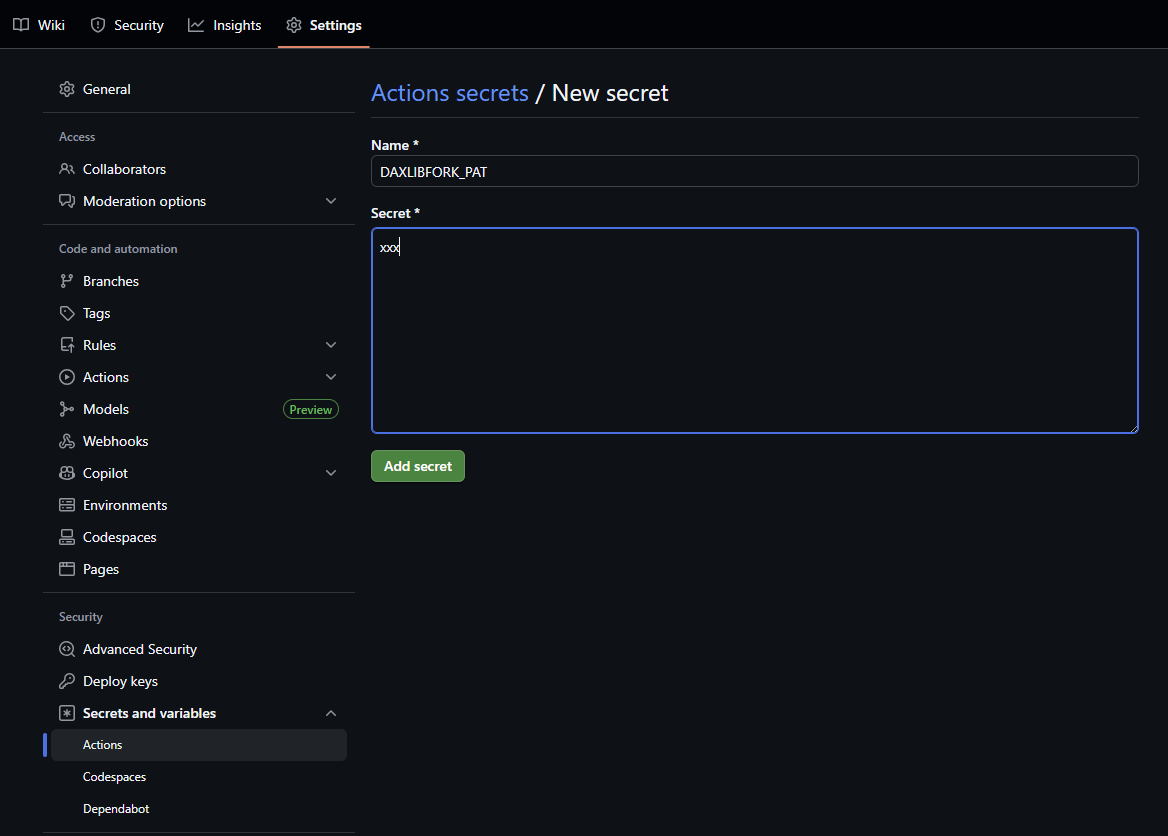

We add the token as a secret on Contoso/Contoso.Conversion, granting these permission to Contoso/daxlib. So that the workflow run from Contoso/Contoso.Conversion can create a new branch in Contoso/daxlib.

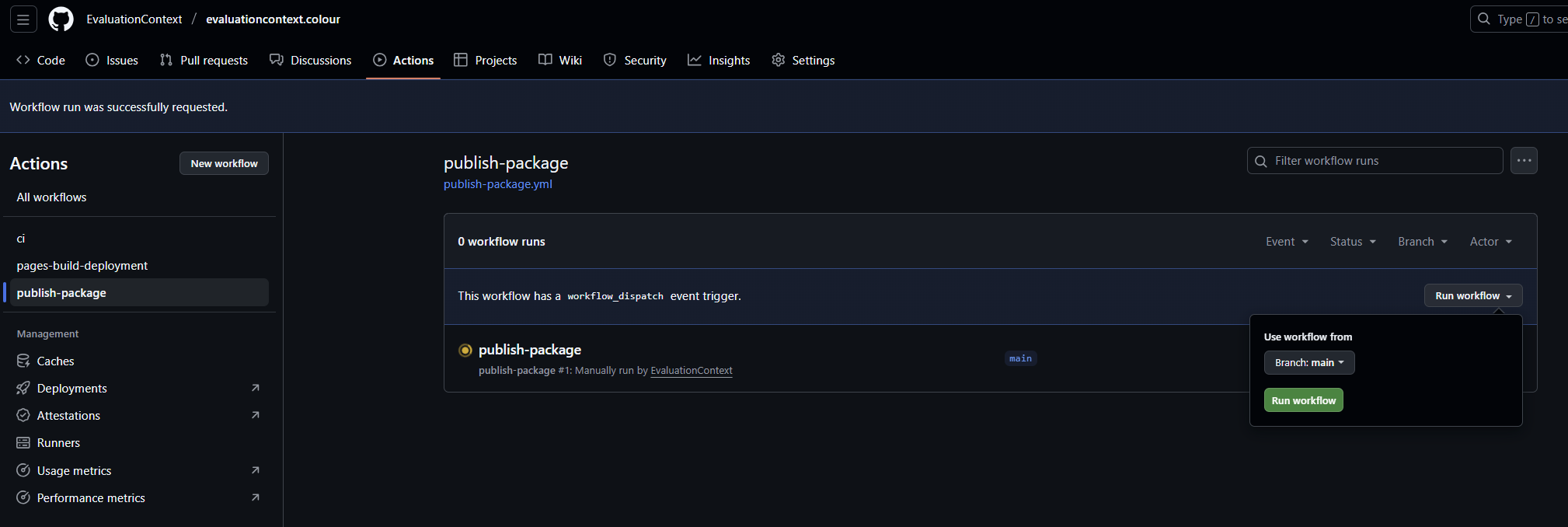

Navigate to actions, select publish-package and Run workflow.

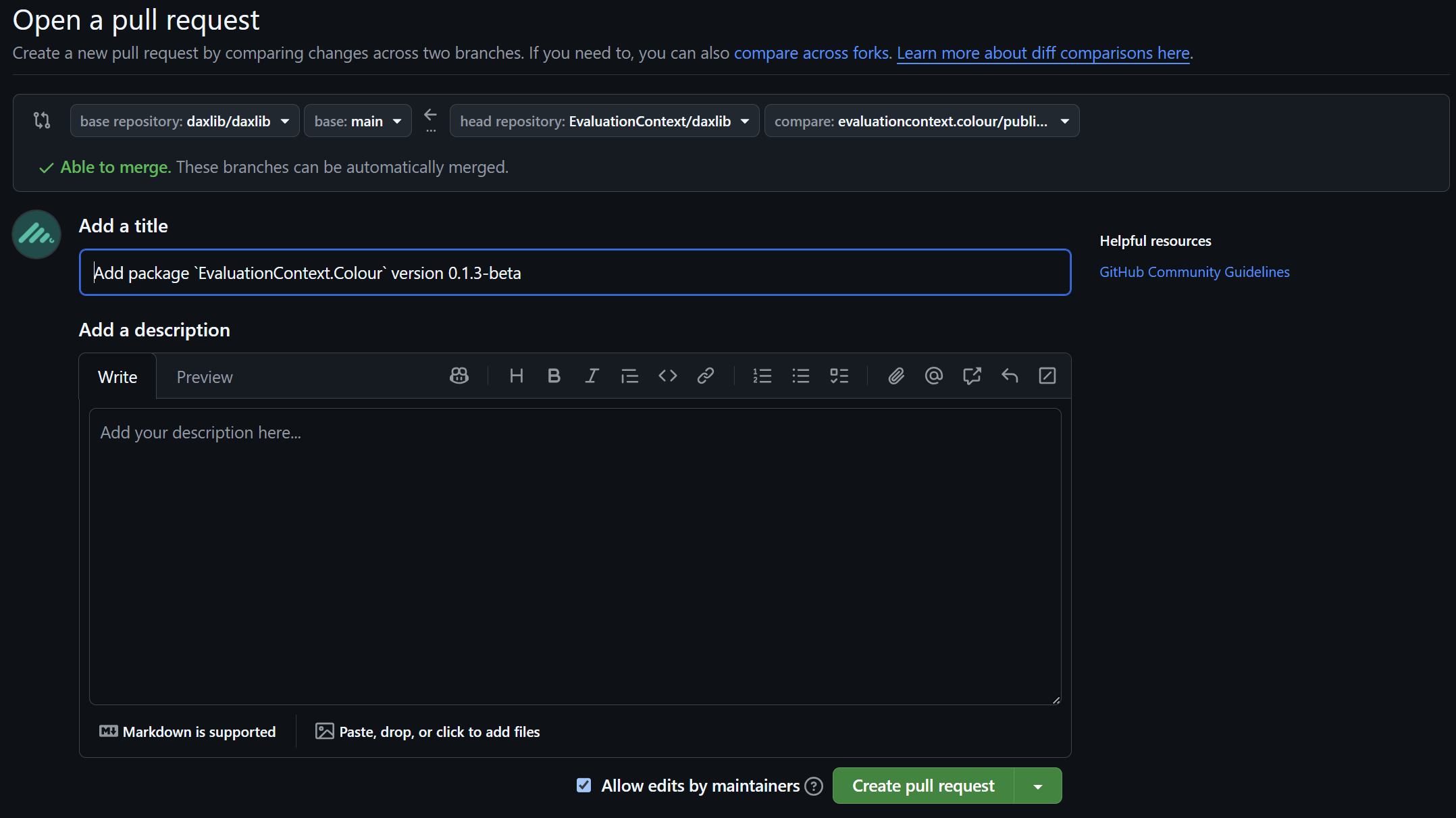

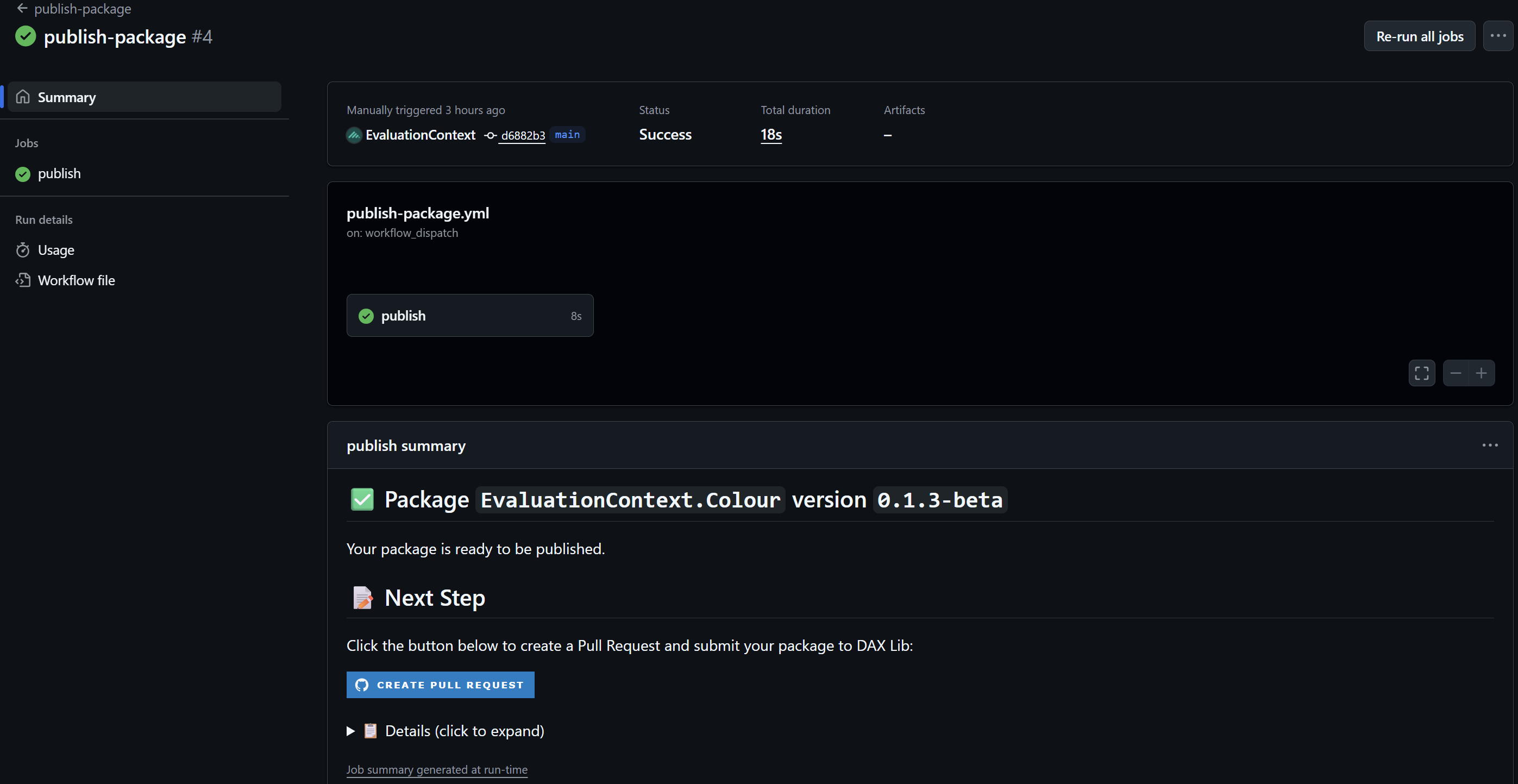

Once complete, open completed publish-package job run, and select the Open Pull Request, to open the Pull request Window.

Select Create pull request to create a pull request to daxlib/daxlib.

The pull request will then be reviewed by the DAX Lib maintainers. If changes are requested during the review:

• Apply the requested fixes to your code in the development repo (Contoso/Contoso.Conversion), and commit them to your repository
• Re-run the publish-package workflow
• The pull request will be automatically updated

Once your pull request is approved and merged, your library will be automatically published on daxlib.org.
